How Many Solar Panels Do You Need to Charge a Power Station?

How Many Solar Panels Do You Need to Charge a Power Station?

How Many Solar Panels Do You Need to Charge a Power Station?

If you’re investing in a portable solar generator, the next big question is:

👉 How many solar panels do you need to charge it efficiently?

Whether you're planning for home backup, RV life, or off-grid adventures, matching your solar panels to your power station is essential. Undersizing leads to long charge times. Oversizing wastes money.

Let’s break it down clearly and show you how to calculate the right number of solar panels based on your generator.

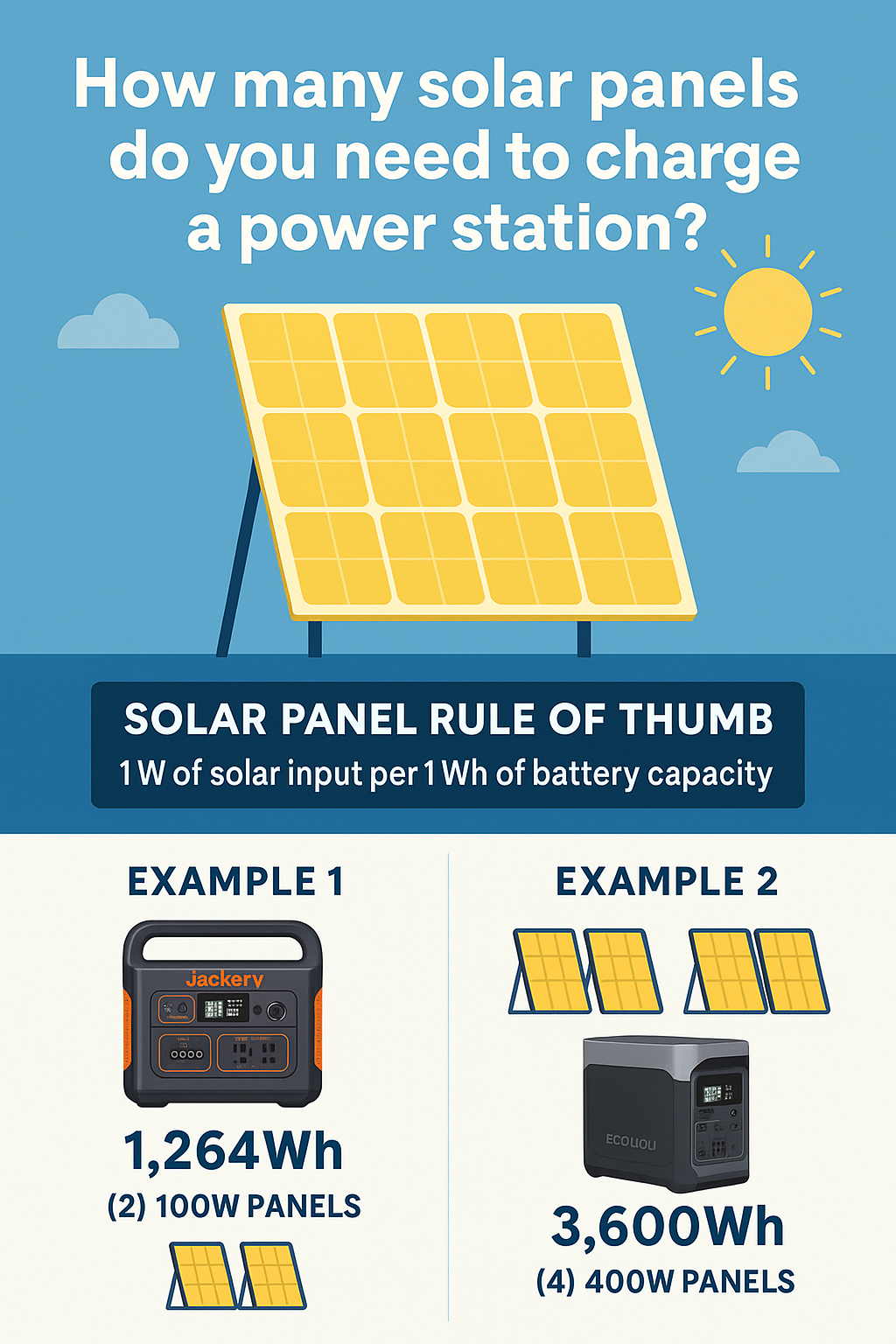

⚡ Quick Answer: The Solar Panel Rule of Thumb

You’ll typically need:

1W of solar input per 1Wh of battery capacity if you want to charge your power station in about 6–8 hours of sunlight.

📌 Example 1: Jackery Explorer 1000 Plus

  • Battery Capacity: 1,264Wh

  • Target Solar Input: 200W – 400W

  • Suggested Panel Setup: (2) 100W panels or (1) 200W panel

  • Charge Time: 6–8 hours in full sun

📌 Example 2: EcoFlow Delta Pro

  • Battery Capacity: 3,600Wh

  • Max Solar Input: 1,600W

  • Suggested Panel Setup: (4) 400W panels

  • Charge Time: ~2.5–3.5 hours in full sun

✅ High-efficiency power stations like EcoFlow and Bluetti can accept faster input if you have more panels or stronger sun.

🔍 How to Calculate Solar Panel Needs (Simple Formula)

Use this formula:

Number of Panels = Battery Capacity (Wh) ÷ (Panel Wattage × Sunlight Hours)

Assume 5–6 hours of usable sunlight per day (varies by location and season).

🔋 Example Calculation

Say you have a 2,000Wh power station and 200W panels:

2,000Wh ÷ (200W × 5hrs) = 2 panels

You’ll need two 200W panels to recharge the station in one day.

☀️ Factors That Affect Charging Speed

  1. Sunlight hours per day – Are you in Texas or Oregon?

  2. Panel efficiency – Monocrystalline panels work best.

  3. Input limit of power station – Some can only accept 500W max.

  4. Cloud cover / shading – Always reduce performance.

  5. Solar angle / tilt – Adjust seasonally for best results.

🔋 Compatible Panel + Generator Bundles

Power Station Ideal Panel Match Input Limit Charge Time
EcoFlow Delta Pro 4x 400W panels 1,600W 2.5–3.5 hrs
Bluetti AC200MAX 2x 350W panels 900W ~4–5 hrs
Jackery 1000 Plus 2x 100W panels 200W 6–8 hrs
Anker SOLIX F2000 2x 200W panels 600W ~5 hrs

Need help building your custom setup? 👉 Chat with our solar experts

📈 Use a Solar Panel Calculator

You can also plug your specs into an online solar panel calculator to test different combinations of:

  • Battery capacity (Wh)

  • Panel wattage

  • Sunlight hours in your region

  • Charging goals (full day vs. overnight)

🛠️ We’re building one for VoltAura.solar — stay tuned!

🧠 FAQ: What People Also Ask

🔹 How many solar panels to charge a 1000Wh power station?

2 x 100W panels, or 1 x 200W panel, will do the job in 6–8 hours.

🔹 Can I use different brands of solar panels?

Yes — if the voltage, connector, and wattage limits match your generator’s input specs.

🔹 Can I overcharge my power station?

No — modern power stations have built-in MPPT controllers and safety shutoffs to prevent overcharging.

🔹 How fast is solar charging vs wall charging?

Wall charging is usually faster, but solar gives you off-grid independence — especially when paired with high-output panels.

💬 Final Thoughts

The right number of solar panels depends on your power station's capacity, your sunlight conditions, and how fast you want to charge. But with a simple formula and a bit of planning, you can create a perfectly matched solar setup for your needs.
